Smart home technology has transformed the way Americans manage comfort and energy efficiency, and at the center of this revolution stands the Nest Thermostat. Whether you’re upgrading to the Google Nest Learning Thermostat or simply installing a Nest Thermostat E, wiring is the most crucial step for proper operation.

In this guide, we’ll cover everything about Nest thermostat wiring, including color code wire mapping, Nest thermostat wiring diagrams, compatibility checks, and common issues. By the end, you’ll have a complete step-by-step understanding of how to wire, install, and troubleshoot your Nest thermostat in American homes.

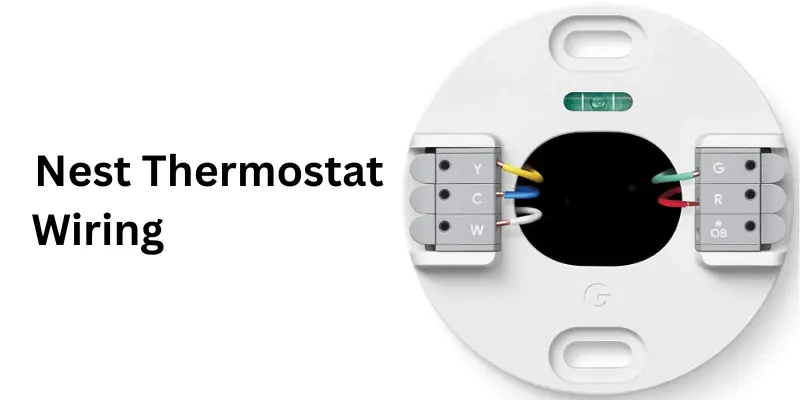

Nest Thermostat Wiring

The Nest Thermostat by Google is more than just a temperature controller—it’s a learning device that adapts to your lifestyle. For Americans dealing with diverse climates—from freezing winters in Minnesota to scorching summers in Texas—having a properly wired Nest thermostat ensures both comfort and savings on energy bills.

At its core, Nest wiring connects your thermostat to the heating, cooling, and sometimes humidifying systems in your home. While the process is not overly complicated, it requires an understanding of wire colors, terminal labels (Rh, Y, W2, etc.), and wiring diagrams.

Why Nest Thermostat Wiring Matters for Your Nest Thermostat

1. Safety – Incorrect wiring can damage your HVAC system.
2. Compatibility – Not all systems support Nest without a C wire.
3. Energy Efficiency – Proper wiring ensures the thermostat learns and optimizes heating/cooling.
4. Functionality – Features like multi-stage heating or heat pumps need specific connections.

Understanding Nest Thermostat Wiring Colors

When you remove your old thermostat, you’ll see a set of colored wires. Each color has a specific purpose, and these are consistent across most U.S. homes.

Here’s the Nest thermostat wiring color code used in American HVAC systems:

• Red Wire (R or Rh/Rc): Power supply from the furnace.
• Yellow Wire (Y): Cooling system connection.
• Green Wire (G): Fan control.
• White Wire (W/W2): Heating system connection.
• Blue/Black Wire (C): Common wire (provides continuous power).
• Orange Wire (O/B): Heat pump reversing valve.

Pro Tip for Americans: Always label your wires before disconnecting the old thermostat.

Nest Thermostat Wiring Diagrams

A Nest thermostat wiring diagram helps visualize the connection between your thermostat and HVAC system.

Standard HVAC System Wiring (Single Stage Heating & Cooling)

Red (R/Rh)  → Power
Yellow (Y)  → Cooling
Green (G)   → Fan
White (W)   → Heating
Blue (C)    → Common wire (optional, but recommended)

Two-Stage Heating and Cooling (with W2 and Y2)

R/Rh → Power
Y → 1st stage cooling
Y2 → 2nd stage cooling
W → 1st stage heating
W2 → 2nd stage heating
G → Fan
C → Common

Heat Pump System Wiring (Nest Heat Link Wiring Diagram)

R/Rh → Power
O/B → Reversing valve
Y → Compressor (cooling)
AUX/W2 → Auxiliary heating
G → Fan
C → Common wire

For those who prefer offline resources, Nest thermostat wiring diagram PDF versions are available on the official Google Nest support website.

Key Thermostat Wires Explained

• Rh Wire Thermostat – Provides power for heating systems.
• Rc Wire Thermostat – Provides power for cooling (sometimes combined with Rh).
• Y Wire Thermostat – Controls the cooling system (air conditioner).
• W2 Wire Thermostat – Used for second-stage heating in advanced systems.
• Nest Thermostat C Wire – Keeps the thermostat powered continuously.

Nest Wiring Guide: Step-by-Step for Americans

Step 1: Turn Off Power

Turn off your HVAC system at the circuit breaker to avoid electrical hazards.

Step 2: Remove the Old Thermostat

Carefully remove the old unit and note wire colors and labels.

Step 3: Label and Prepare Wires

Use stickers or masking tape to label wires according to their terminal connections.

Step 4: Install the Nest Base Plate

Attach the Nest base plate to the wall using screws and anchors.

Step 5: Connect the Wires to Nest Terminals

Insert each wire into the corresponding Nest connector:

• R → Rh/Rc
• Y → Y
• G → G
• W → W
• C → C (if available)

Step 6: Mount the Nest Thermostat

Snap the Nest thermostat display onto the base.

Step 7: Power On and Setup

Turn the circuit breaker back on and follow the on-screen setup instructions.

Nest Thermostat Installation in American Homes

The installation process varies slightly depending on your HVAC type:

• Gas Furnace Systems – Usually R, W, G, and C wires are needed.
• Central Air Conditioning – Requires R, Y, G, C wires.
• Heat Pump Systems – Needs additional O/B wiring.
• Dual Fuel Systems – Advanced setup, may require professional installation.

Google Nest Wiring Compatibility

Not all HVAC systems are compatible with Nest thermostats. Google provides an online Nest wiring compatibility checker where you enter your wire configuration to confirm.

Most American homes with 24V systems are supported. High-voltage systems (120V or 240V) require special adapters and are not directly compatible.

How to Wire a Nest Thermostat Without a C Wire

Many older American homes lack a C wire. In such cases, the Nest may still function by drawing power from the Rh or Rc wire, but performance issues may occur.

Solutions:

1. Install a C wire adapter (recommended).
2. Use the Nest Power Connector available from Google.
3. Hire an electrician to run a new wire.

How to Install Nest Learning Thermostat

The Nest Learning Thermostat is a premium option with features like auto-scheduling and energy tracking. Installation is similar to the standard Nest, with these added tips:

• Ensure your HVAC supports advanced features (multi-stage heating/cooling).
• Download the Google Home app for easier setup.
• Connect to Wi-Fi for remote control and smart learning.

Common Nest Thermostat Wiring Issues

1. No Power Detected – Often caused by a missing or disconnected C wire.
2. Fan Not Working – Miswiring of the G wire.
3. Heat Not Turning On – Incorrect W or W2 wire connection.
4. Cooling Issues – Y wire misplacement or Rc/Rh confusion.
5. Nest Wiring Compatibility Errors – Some HVAC systems require professional adapters.

Nest Wiring Diagram PDF & Resources

For those who prefer a printed or offline guide, Google offers:

• Nest thermostat wiring diagram PDF
• Nest wiring compatibility chart
• Nest wiring troubleshooting guide

These resources can be downloaded directly from the official Google Nest website.

Nest Heat Link Wiring Diagram (For U.S. and Global Users)

The Nest Heat Link is primarily used in Europe but can apply to certain advanced American HVAC systems with boilers. It connects the Nest thermostat to the heating system and may require professional installation.

Safety Tips for Wiring Your Nest Thermostat

• Always cut off power before touching wires.
• Do not attempt high-voltage connections (120V/240V).
• Double-check wire placements before powering on.
• Consult a licensed HVAC technician if unsure.

How To Add A C Wire For Nest Thermostat

Adding a C (common) wire gives your Nest thermostat a steady 24V supply so it won’t rely on battery trickle/“power stealing” techniques. Common methods:

1. Check First (App + Visual): Use the Google Home / Nest app’s wiring check (or Nest Compatibility Checker) to confirm whether your system needs a C-wire. If the app flags missing C-power, proceed.
2. Look At The Furnace Control Board: Turn OFF power at the breaker. Open the furnace/air handler access panel and locate the thermostat terminals (R, C, Y, G, W). If there’s an unused spare wire in the cable bundle, you can attach it to the C terminal on the control board and the C connector on your Nest.
3. Use Nest Power Connector (If No Spare Wire): Google sells a Nest Power Connector (or use a third-party common adapter) that installs at the furnace and gives the Nest a stable C-equivalent without running a new wire. Follow Nest’s official instructions for the connector. Google Help
4. Run A New Wire (If Needed): If no spare conductor exists and you don’t want a power connector, run a new 5th conductor from the furnace C terminal to the Nest C terminal. This is the most reliable fix.
5. Test & Restore Power: Reconnect power, use the Nest app to confirm wiring, and test operation.

Safety note: Always switch off power before touching furnace wiring. If you’re not comfortable working inside the HVAC unit, hire a licensed HVAC electrician/pro.

Does a Nest Thermostat Need a C Wire?

Short answer: Often yes for stable performance, but it depends on the model and your HVAC system.

• Many Nest models (especially the Nest Thermostat and Nest Learning Thermostat) work best with a C-wire; without it they may rely on battery power or power-stealing methods and can show symptoms like random reboots, “no power” errors, or battery drain. The Nest app will tell you during setup if a C-wire is recommended or required.
• Some Thermostat E / basic Nest products can run without a C-wire in simple single-transformer systems but may still be less reliable. If you experience intermittent power loss or connectivity issues, add a C-wire or use the Nest Power Connector.

Recommendation: Start with the app’s wiring check and only proceed to add hardware if the app or symptoms indicate low/unstable power.

Nest Thermostat Wiring To Two Transformers

When a home has two separate 24V transformers (one for heating, one for cooling), wiring must keep the two transformer circuits isolated:

• Many thermostats expect a single 24V supply. If your wall thermostat shows both Rc and Rh (separate red wires), that suggests separate transformers. Nest thermostats can usually detect and handle this, but the industry standard is that C pairs with Rc (cooling transformer). Consult Nest’s compatibility guidance and the furnace/air handler wiring diagrams.
• Do not tie (directly connect) the two transformers together — that can cause damage. If your system truly has dual transformers, you should call an HVAC pro to confirm the proper wiring approach (sometimes a relay or isolation device is needed). Home Improvement Stack Exchange

If you’re unsure, take a photo of your control board and the old thermostat wiring and get a pro to verify — safer than guessing.

How To Wire Nest Thermostat Rh Rc Jumper

Rh and Rc indicate separate 24V supplies for heating (Rh) and cooling (Rc). Modern Nest thermostats usually contain an internal jumper and will auto-manage Rh/Rc:

• If you have one red wire (R): Place it in R (or Rh/Rc per Nest’s labeling). Nest will internally bridge as needed — no external jumper required.
• If you have separate Rc and Rh wires from two transformers: Leave them on their respective terminals only if the system supports dual transformers and Nest supports the configuration; otherwise get professional help (see “two transformers” above).

Important: Don’t put two wires into one Nest connector or add an external jumper unless Nest’s guide explicitly instructs it — doing so can damage connectors or your HVAC system.

Nest Thermostat Wiring For HVAC 5 Wire

A 5-wire thermostat cable is common and gives you all primary signals:

• Typical 5-wire mapping: R (power), C (common), G (fan), Y (cooling), W (heat). Nest’s app gives a tailored wiring map during setup; match each function to the Nest terminal.
• For heat pump systems, the mapping may differ (O/B for reversing valve, AUX for backup heat). Use Nest’s heat-pump wiring guidance or consult a pro if you see O, B, or multiple W/Y wires.

Tip: Photograph the old thermostat wiring before disconnecting, and use Nest’s installer app step to verify each terminal.

Nest Thermostat Wiring White Wire W1 W2 Difference

The white wires are heater calls; W1 and W2 have distinct uses:

• W1 — First-stage heat (primary furnace call).
• W2 / AUX / Aux Heat — Second-stage heat or auxiliary/emergency heat (common on multi-stage furnaces or heat pump + furnace dual-fuel systems). In heat pump setups W2 often maps to AUX or backup heating.

If you only have single-stage heat, only W (or W1) is used. If you have two stages or a heat pump with backup heat, connect both W1 and W2/AUX as labeled by Nest.

Nest Thermostat Wiring Common Wire Not Present

If the common (C) wire is not present at the thermostat:

Options:

1. Use Nest Power Connector (if compatible) — installs at the furnace and can simulate a C-wire without running new wire.
2. Repurpose an unused conductor — if your cable has extra unused wires, attach an unused conductor to the C terminal at the furnace and to C on the Nest.
3. Run a new wire — best long-term reliability; run a 5-conductor cable to the thermostat.
4. Use an external C-wire adapter or a separate transformer and isolation relay (less common).

Avoid relying on power-stealing if you experience reboots, Wi-Fi disconnects, or thermostat errors — those are signs you need a proper C solution.

Nest Thermostat Wiring For Electric Furnace

Electric furnaces typically use line-voltage or low-voltage control depending on the system; most Nest thermostats expect low-voltage (24V) control:

• If your electric furnace uses a 24V control board with R, C, W, Y, G terminals, wire Nest as usual (matching terminals). Use the Nest app to confirm.
• If the furnace is line-voltage (high-voltage, e.g., 120/240V) thermostat — you must not connect a Nest directly. Nest thermostats are not for direct control of line-voltage heaters. For these systems use a compatible line-voltage smart thermostat or install a low-voltage control relay/transformer in the furnace (professional installation required).

If you are unsure whether your furnace is low- or line-voltage, stop and have an HVAC electrician confirm — wiring the wrong way can damage equipment or cause fire risk.

Professional Nest Thermostat Wiring Installation Cost USA

Costs vary by complexity and region. Typical U.S. ranges:

• Basic install (no C-wire needed, single-stage system): often $100–$200.
• Standard smart thermostat install (may include adding C-wire or using adapter): commonly $200–$500 depending on labor and whether a new C-wire or power connector is required. HomeAdvisor/AHG averages put smart thermostat installs around $200–$500 with an average near $350.
• Complex installs (dual transformers, multi-stage systems, line-voltage conversion, running new wiring, or resolving HVAC integration issues): can exceed $500, sometimes up to $1,000+ in very complex scenarios.

Recommendation: Get 2–3 local quotes (HVAC tech or licensed electrician), and ask if the quote includes material (power connector, wire) plus labor. If price-sensitive, confirm whether the installer will use the Nest Power Connector (less invasive) vs. running new wire.

Nest Thermostat Wiring Troubleshooting No Power

If your Nest reports “No Power” or is dead:

1. Check breaker / switch: Ensure HVAC power is on.
2. Inspect wiring at the thermostat: Make sure the R (power) wire is firmly in place and not shorted. Photograph and reseat wires.
3. Check furnace control board: Verify the 24V transformer output with a multimeter (24VAC). If transformer is dead, HVAC tech needed.
4. Look for blown fuses: Some control boards have a replaceable fuse.
5. Battery/charge issues: If Nest runs on batteries or charges via power stealing and power is flaky, the thermostat may report no power. A proper C-wire (or Nest Power Connector) often fixes intermittent no-power errors.
6. Call a pro: If you’re not comfortable testing transformer voltage or replacing fuses, hire an HVAC technician.

Always turn off power before removing the thermostat or working on the control board.

Nest Thermostat Wiring Y1 And G Jumper

Y1 controls the compressor (cooling), G controls the fan. Jumping Y1 to G is generally not recommended:

• On some older systems a jumper was used to run the condenser fan together with cooling; modern thermostats (like Nest) control the fan separately and expect separate G and Y wires. If your old thermostat had a jumper between Y and G because your system lacked a separate fan lead, that indicates you had nonstandard wiring and you should consult HVAC documentation or a pro.
• Do not place multiple wires in a single Nest terminal or create ad-hoc jumpers on the Nest device. Let the Nest/installer configure fan control properly.

If your system requires special wiring (e.g., older A/C units with single-lead control), have a technician add a proper fan relay or rewire the bundle.

Low Voltage Thermostat Wiring

Low-voltage thermostats (common in residential HVAC) typically use 24VAC control wiring and are safe to work on when the power is off. Key points:

• Standard wire colors (typical but not guaranteed): R (red) = 24V power, C (blue/brown) = common, G (green) = fan, Y (yellow) = cooling compressor, W (white) = heat, O/B (orange/blue) = heat pump changeover. Colors vary — always verify with the control board and app.
• Before you touch wires: Turn off power to the HVAC system at the breaker. Photograph existing wiring. Use Nest’s app to identify wires during install.
• When in doubt call a pro: Low-voltage is generally safe for DIY work if you’re comfortable, but systems with dual transformers, boilers, or line-voltage components need professional handling.

Summary

The Nest thermostat wiring process is a crucial step in ensuring your home stays comfortable year-round while maximizing energy efficiency. From understanding color codes and wiring diagrams to solving issues like missing C wires, Americans can successfully install and enjoy smart climate control with Nest.

Conclusion

Installing and wiring a Nest thermostat may seem intimidating, but with the right knowledge of wiring colors, diagrams, and compatibility, most American homeowners can complete the job in under an hour.

Whether you’re upgrading to the Nest Learning Thermostat or setting up a Google Nest Thermostat, proper wiring ensures safety, efficiency, and seamless integration with your HVAC system.

By following this guide, Americans can confidently handle Nest thermostat wiring and enjoy the full benefits of smart home technology.
