Fire Detector: The Ultimate Guide to Types, Uses, Costs, and Innovations

A fire detector is a vital safety device designed to identify early signs of fire, such as smoke, heat, or flames, and trigger alarms to alert occupants. Fire detectors are a critical component of residential, commercial, and industrial fire safety systems. They provide early warnings, giving people enough time to evacuate and preventing catastrophic property damage.

In modern buildings, fire detection systems are often integrated with sprinklers, alarms, and emergency response mechanisms. From smoke detectors in homes to advanced addressable fire alarm systems in large facilities, fire detectors have evolved into sophisticated, reliable, and lifesaving devices.

What is a Detector in General?

In general, a detector is any device, tool, or system that senses a particular event, substance, or change in the environment and responds to it.

• It may measure heat, light, sound, radiation, gas, smoke, or movement.
• The detector usually triggers an alert, signal, or system action when it senses something unusual.

Examples of detectors in daily life:

• Metal detector – senses metals.
• Motion detector – senses movement.
• Gas detector – senses gases like carbon monoxide or methane.
• Radiation detector – senses harmful ionizing radiation.

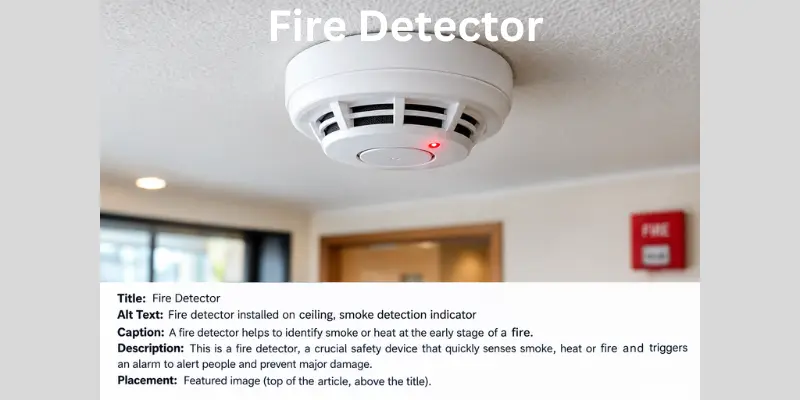

What is Fire Detector

It is one of the most critical components of fire protection systems used in homes, offices, factories, warehouses, and public spaces.

Main Functions of a Fire Detector:

1. Early Warning – Provides fast detection of fire before it spreads, giving people time to escape.
2. Automatic Alarm Activation – Activates alarms or sirens to alert occupants.
3. System Integration – Can be connected to fire alarm systems, sprinklers, or monitoring centers.
4. Life & Property Protection – Helps reduce injuries, fatalities, and property loss.

Inventor and Early Development

Two major contributors shaped the early development of fire detectors:

• George Andrew Darby – Developed the first heat detector (1902).
• Walter Jaeger – Created the first ionization smoke detector (1930s).

Their inventions set the foundation for modern fire detection technology that continues to save millions of lives.

History of Fire Detectors

The history of fire detectors is closely tied to humanity’s quest for safety.

• 1902: George Andrew Darby invented the first heat detector in Birmingham, England.
• 1930s: Walter Jaeger accidentally invented the ionization smoke detector while attempting to create a poison gas sensor.
• 1960s: Home smoke detectors became commercially available.
• 1970s: Fire codes made smoke detectors mandatory in residential and commercial buildings.
• 1990s–2000s: Smart, multi-sensor, and wireless detectors entered the market.
• Today: AI-powered detectors can identify fire sources and notify emergency services instantly.

Working Mechanism of Fire Detectors

Different detectors work on different principles:

• Ionization Smoke Detectors: Use radioactive material to ionize air; smoke disrupts current flow, triggering alarm.
• Photoelectric Smoke Detectors: A light beam gets scattered by smoke particles, setting off alarm.
• Heat Detectors: Respond when temperature exceeds a set threshold.
• Flame Detectors: Detect infrared or ultraviolet radiation from fire.
• Multi-Sensor Detectors: Cross-check data from multiple sensors for accuracy.

Comparison Table of Fire Detectors

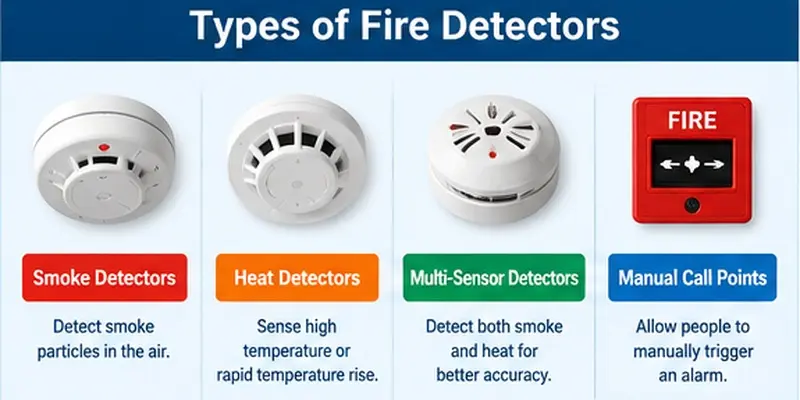

Types of Fire Detectors and Their Uses

1. Ionization Smoke Detector

• Use: Detects small, invisible particles from fast-flaming fires.
• Best For: Areas prone to rapid combustion (storage rooms, offices).

2. Photoelectric Smoke Detector

• Use: Detects larger smoke particles from slow, smoldering fires.
• Best For: Living areas, bedrooms, lounges.

3. Heat Detector

• Use: Responds to a rapid rise in temperature.
• Best For: Kitchens, garages, mechanical rooms.

4. Flame Detector

• Use: Uses UV/IR sensors to detect fire flames.
• Best For: Oil refineries, chemical plants, fuel stations.

5. Multi-Sensor Detector

• Use: Combines heat, smoke, and CO sensors for accuracy.
• Best For: Schools, hospitals, large offices.

6. Carbon Monoxide (CO) Detector

• Use: Identifies dangerous CO gas produced during fires.
• Best For: Homes with fireplaces, fuel-burning heaters.

7. Wireless Fire Detector

• Use: Connects to alarms without wiring.
• Best For: Smart homes, temporary installations.

8. Addressable Fire Detector

• Use: Identifies exact location of fire in buildings.
• Best For: Hotels, hospitals, airports, and malls.

Common Uses of Fire Detectors

1. Homes for residential fire safety.
2. Schools and universities for student protection.
3. Hospitals to safeguard patients.
4. Offices for workplace safety.
5. Industrial plants for fire risk management.
6. Warehouses to protect stored goods.
7. Shopping malls for public safety.
8. Hotels to safeguard guests.
9. Airports for rapid fire response.
10. Railways and metros for transport safety.
11. Laboratories handling chemicals.
12. Oil refineries and gas stations.
13. Restaurants and kitchens.
14. Data centers protecting sensitive equipment.
15. Libraries and museums for artifact protection.
16. High-rise apartments.
17. Sports complexes and stadiums.
18. Theaters and cinemas.
19. Parking garages.
20. Government and public service buildings.

Materials Used in Fire Detectors

1. Plastic Housing – Durable and heat-resistant.
2. Metallic Contacts – For electrical conductivity.
3. Circuit Boards – Brain of the detector.
4. Light Sources (LED/laser) – For photoelectric detectors.
5. Radioactive Elements (Americium-241) – For ionization detectors.
6. Thermocouples – For heat detectors.
7. Gas Sensors (Electrochemical cells) – For CO detectors.
8. Wireless Modules – For smart fire detectors.

Importance Points of Fire Detectors

1. Provide early fire detection.
2. Reduce fire-related deaths.
3. Protect property and valuables.
4. Lower insurance premiums.
5. Essential for compliance with fire codes.
6. Reduce response time for firefighters.
7. Improve workplace safety.
8. Help protect vulnerable populations (elderly, children).
9. Detect toxic gases like CO.
10. Minimize business downtime after fire incidents.

Usage Over Time (Past, Present, Future)

• Past: Basic smoke alarms and heat detectors.
• Present: Smart detectors with wireless connectivity, multi-sensors, and IoT features.
• Future: AI-powered fire detection, predictive maintenance, integration with drones, and cloud-based monitoring systems.

Regulations and Standards

• NFPA 72 – National Fire Alarm and Signaling Code.
• UL Standards – Testing certification for detectors.
• OSHA Requirements – Workplace fire safety.
• ICC Codes – Building safety requirements.

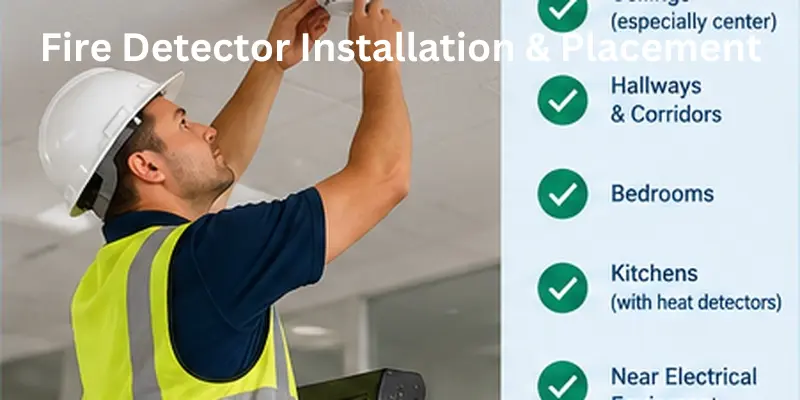

Installation Guide (DIY vs Professional)

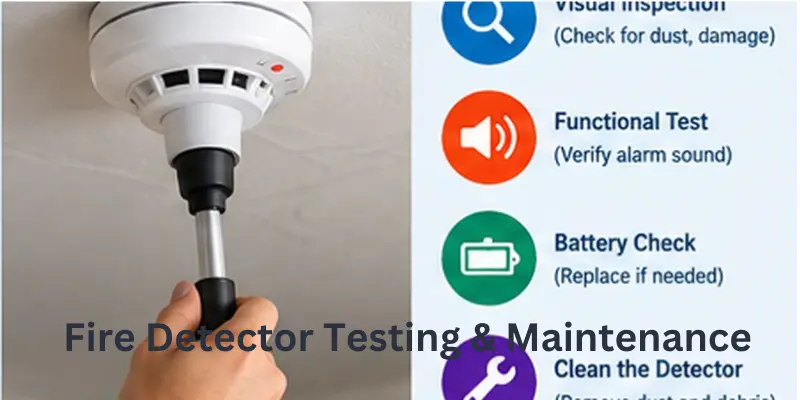

Maintenance Checklist

1. Test detectors monthly.
2. Replace batteries twice a year.
3. Clean detectors regularly.
4. Inspect for dust/dirt.
5. Replace units every 8–10 years.
6. Keep records of inspections.
7. Professional service annually.

Cost Comparison of Fire Detectors

Innovations in Fire Detection

• AI-based recognition (distinguishes real fires from steam/dust).
• IoT-enabled detectors (send alerts to smartphones).
• Voice alarms (better for children and elderly).
• Video smoke detection (via CCTV).
• Self-testing detectors (reduce manual checks).

Pros and Cons

How Often Should You Replace Smoke Detectors

Smoke detectors should typically be replaced every 10 years, regardless of whether they appear to be working or not. The internal sensors degrade over time, reducing their ability to detect smoke effectively. Manufacturers usually print the expiration date on the back of the device.

How Long Do Smoke Detectors Last

Most smoke detectors last between 8 to 10 years. After that, the reliability decreases significantly. Even if the alarm still powers on, the sensors may no longer detect smoke accurately.

What Kinds of Smoke Detectors Are Available

The main types of smoke detectors include:

• Ionization Smoke Detectors – Best at detecting fast-flaming fires.
• Photoelectric Smoke Detectors – Best at detecting smoldering fires.
• Dual-Sensor Smoke Detectors – Combine ionization and photoelectric sensors for broader protection.
• Smart Smoke Detectors – Connect to Wi-Fi, send phone alerts, and integrate with smart home systems.
• Heat Detectors – Triggered by rapid temperature rise or fixed heat levels.

Difference Between Ionization and Photoelectric Smoke Detector

• Ionization: Uses a small amount of radioactive material to detect particles from fast-burning fires. They respond quickly to flames but may trigger nuisance alarms from cooking.
• Photoelectric: Uses a light beam sensor to detect smoke from smoldering fires. They are less prone to false alarms from cooking but slower at detecting rapid flames.

Dual Sensor Smoke Alarms And New Testing Standards For Both Smoldering And Flaming Fires

Dual-sensor alarms combine ionization and photoelectric technology, giving protection against both smoldering and fast-burning fires. Recent testing standards require detectors to perform well in both scenarios, including updated smoldering fire tests and the so-called “Hamburger test” (cooking smoke interference), ensuring fewer nuisance alarms.

Are Interconnected Smoke Detectors Better

Yes, interconnected smoke detectors are considered much safer. If one alarm senses smoke, all alarms in the system sound simultaneously. This is especially beneficial in large homes, multi-story buildings, or when occupants are asleep far from the initial fire source.

How Often Should I Test My Smoke Alarm

You should test smoke alarms once a month by pressing the test button. This ensures the sounder works. Additionally, replace batteries once a year if not using 10-year sealed battery alarms.

Chirping Smoke Alarm—What Does It Mean

A chirping smoke alarm usually signals a low battery or that the unit needs to be replaced. If replacing the battery doesn’t stop the chirping, the detector may have reached its end of life.

Nuisance Alarms And How To Prevent Them

Nuisance alarms are false alarms caused by steam, cooking smoke, or dust. Prevention tips include:

• Installing photoelectric alarms near kitchens (less prone to false triggers).
• Keeping alarms at least 10 feet from cooking appliances.
• Regularly cleaning the alarm to prevent dust buildup.

Smart Smoke Detectors 2025 Best Models

The best smart smoke detectors in 2025 include models from Google Nest Protect, Kidde Smoke + CO Alarm, and First Alert Onelink Safe & Sound. They feature app notifications, voice alerts, self-testing, and integration with smart assistants (Alexa, Google Home, Apple HomeKit).

Options To Replace Wired Smoke Detectors

When replacing wired smoke detectors, you can either:

• Use compatible wired replacements (Kidde, First Alert, BRK models often fit existing wiring).
• Switch to hardwired smart detectors with battery backup.
• Cap the wiring and install wireless units if rewiring is not desired (but this may not meet building codes).

New Smoke Detector Standards (Hamburger Test

The “Hamburger Test” refers to updated standards ensuring smoke detectors don’t trigger nuisance alarms from normal cooking smoke (like frying hamburgers). Modern detectors now include smarter sensors, algorithms, and thresholds to reduce false alarms while maintaining safety.

• Cooking smoke and steam.
• Dust accumulation.
• Insects inside the detector.
• Humidity and condensation.
• Electrical wiring issues.
• End-of-life malfunction in old detectors.

How To Troubleshoot A Malfunctioning Fire Alarm System

Steps include:

1. Check batteries or power supply.
2. Vacuum dust or debris around sensors.
3. Test the alarm with the test button.
4. Reset the system (for interconnected alarms).
5. Check wiring or breaker if hardwired.
6. Replace the unit if it’s over 10 years old.

Smoke Detector Search Trends Peak January 2025

Search data shows that interest in smoke detectors and fire alarms peaked in January 2025. This trend aligns with New Year safety checks, holiday fire incidents, and annual maintenance resolutions made by households.

Smart Smoke Detector Demand And Market Projections

The smart smoke detector market is projected to grow steadily through 2030, driven by increasing adoption of smart homes, insurance incentives, and government safety regulations. By 2025, demand has already surged as more people upgrade from traditional alarms to connected fire safety systems.

FAQs About Fire Detectors

1. What is the difference between a fire detector and a smoke detector?

A fire detector is a broader term that includes smoke, heat, flame, and gas detectors, while a smoke detector specifically detects smoke particles.

2. How often should fire detectors be tested?

Fire detectors should be tested monthly and professionally inspected annually.

3. Can fire detectors prevent fires?

No, fire detectors do not prevent fires; they only provide early warnings to reduce damage and fatalities.

4. What is the lifespan of a fire detector?

Most fire detectors last between 8–10 years, after which replacement is recommended.

5. Are wireless fire detectors reliable?

Yes, modern wireless detectors are highly reliable, but they depend on battery health.

6. Do fire detectors detect carbon monoxide?

Not all do. Only combination or CO detectors can detect carbon monoxide.

7. Are fire detectors mandatory?

Yes, most building codes require fire detectors in residential, commercial, and industrial buildings.

8. Which type of fire detector is best for homes?

Photoelectric detectors are recommended for bedrooms, while ionization types are suitable for kitchens and hallways.

9. How many fire detectors should a house have?

At least one on every floor, in every bedroom, and near the kitchen.

10. Can pets trigger fire detectors?

No, pets cannot trigger detectors, but smoke, heat, or dust can.

Summary

A fire detector is a life-saving device that identifies smoke, heat, flames, or gases associated with fire hazards. From early inventions by George Andrew Darby and Walter Jaeger to modern AI-enabled smart detectors, fire detection technology has transformed safety standards. Fire detectors play a crucial role in residential, commercial, and industrial fire safety, reducing fatalities, property loss, and environmental damage.

Conclusion

Fire detectors are essential components of safety systems, designed to protect lives and property. With different types—ionization, photoelectric, heat, flame, CO, wireless, and addressable—each serves unique purposes. Their evolution from simple mechanical devices to intelligent IoT-enabled systems highlights their importance in modern safety infrastructure. Regular maintenance, correct placement, and periodic upgrades ensure maximum protection. Investing in high-quality fire detectors is not just a compliance requirement—it is a commitment to safety and peace of mind.
