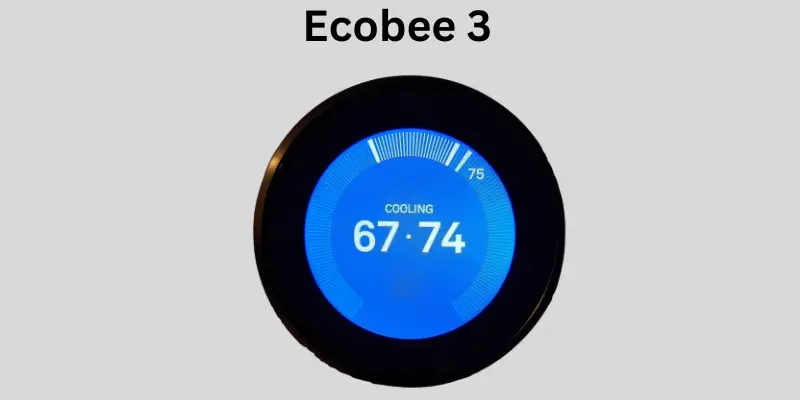

Ecobee 3 — Ultimate Guide, Specs, Features & Smart Thermostat Tips

The Ecobee 3 (often written ecobee3) is a Wi-Fi smart thermostat designed to improve home comfort while cutting energy waste. Launched as part of Ecobee’s evolution from traditional programmable thermostats to cloud-connected, sensor-aware smart thermostats, the Ecobee 3 brought remote room sensing, scheduling intelligence, and third-party smart-home integrations to mainstream users. Throughout this guide we’ll call out everything you need to know: hardware and software specs, remote sensors, installation notes, energy benefits, common problems and fixes, and whether the Ecobee 3 is still a sensible buy today.

Here’s TOC for your more choices

Types of Ecobee 3 and Related Variants

When people refer to “Ecobee 3,” they usually mean the original Ecobee3 smart thermostat — but over time, there have been a few closely related versions / variants. Here’s a breakdown of the main types:

Why “Types” Matter

• Feature trade-offs: Choosing between the original Ecobee 3 and Ecobee 3 Lite comes down to what features you care about — whether built-in sensors, design, or whether you’re fine relying on remote sensors.
• Compatibility & wiring: Some variants (especially “Lite”) may have different wiring or power-requirements; make sure your HVAC system is compatible.
• Support & availability: Since Ecobee 3 is an older model, certain versions (especially older gens) may be harder to find new, and support / firmware status may vary.
• Professional vs consumer use: Pro/Builder versions are optimized for installations at scale — useful if you’re an HVAC contractor or installing multiple units.

Recommendation

• If you want full functionality and don’t mind possibly paying more / working with existing wiring, go for the original Ecobee 3 — it gives you the remote sensor flexibility and more “smart” behavior.
• If you want a more budget-friendly but still smart thermostat, Ecobee 3 Lite is a solid pick — especially if you don’t need all the advanced sensors built-in.
• For commercial or multi-install scenarios, check out the 3 Lite Pro / Builders Pack.
• If you’re open to newer models (not strictly “3”), the Smart Thermostat Premium offers more advanced capabilities (IAQ, speaker, etc.).

Remote Sensors — How They Work and Why They Matter

Remote sensors are compact battery-powered units that report temperature and occupancy back to the Ecobee 3. Use cases:

• Balance temperatures across rooms: prioritize living room in the evening, bedroom overnight.
• Occupancy detection: shift comfort to occupied rooms and save energy when rooms are empty.
• Zone optimization without zoning hardware: while not full HVAC zoning, sensors help the thermostat make smarter decisions about when the home actually needs heating/cooling.

Ecobee 3 Quick Snapshot — Key Specs & Selling Points

• Primary product name: Ecobee 3 (ecobee3).
• Form factor: Wall-mounted touchscreen thermostat with round-ish square design.
• Remote sensors: Ships with one sensor; supports up to 32 remote sensors for multi-room temperature and occupancy sensing.
• Smart home compatibility: Works with major platforms such as Amazon Alexa, Apple HomeKit, Google Assistant and SmartThings (varies by firmware/model).
• Power requirements: Typically requires a common wire (C-wire) or the Ecobee Power Extender Kit in some setups.
• Main benefits: Multi-room comfort using remote sensors, scheduling and geofencing, energy-saving algorithms, and remote control through the Ecobee app.

Concise Comparison Table of Ecobee 3, Ecobee 3 Lite, and Ecobee Smart Thermostat Premium:

Why Ecobee 3 matters (value propositions)

1. Room-level comfort with remote sensors. Ecobee’s strategy was to solve “hot rooms / cold rooms” by using remote temperature/occupancy sensors—so the thermostat can aim for the average or a priority room instead of the sensor at the thermostat’s wall. This leads to more consistent comfort across living spaces.
2. Energy savings without complicated programming. The Ecobee app and scheduling features simplify efficiency — set basic schedules and let the thermostat optimize run times and recovery.
3. Smart home integration. For homeowners with an existing smart ecosystem, Ecobee 3 integrates with voice assistants and many automation systems, allowing voice control and scene automation.
4. Upgrade path and ecosystem. Ecobee followed the Ecobee 3 with more advanced models (Ecobee4, Smart Thermostat Premium, etc.), but the 3 remains an important step in Ecobee’s product roadmap.

Ecobee 3 Hardware & Design

The Ecobee 3 uses a color touchscreen and a minimalist design intended to blend into modern interiors. It includes built-in temperature and occupancy sensing (depending on firmware and hardware revisions) and connects to remote sensors wirelessly. The unit typically mounts over a standard thermostat box and the backplate carries the wiring terminals for typical HVAC systems (heat/cool, fan, common/C-wire, accessories in some models).

Installation notes (high level):

• Turn off HVAC power before wiring.
• Confirm system type (conventional vs heat pump).
• If no C-wire is present, Ecobee recommends installing a C-wire or using Ecobee’s Power Extender Kit to avoid battery drain or intermittent behavior.
• Many users prefer professional installation for complex systems or if accessories like humidifiers/dehumidifiers are present.

Software — App, Scheduling, and Smart Features

Ecobee’s mobile app (iOS & Android) is the central control point for schedules, remote sensors, and energy reports. Key software features typically include:

• Scheduling and temporary holds: simple schedule creation and easy holiday/away mode.
• Home/Away & geofencing: automatically switches modes based on smartphone location.
• Smart Recovery: learns how long your home takes to reach set temperatures and starts the HVAC early to reach target at scheduled times.
• Alerts & HVAC monitoring: reminders for filter changes and unusual system behavior (depends on subscription level and firmware).
• Remote access and cloud features: except for legacy devices which may lose cloud services (see “support & lifecycle” below). support.ecobee.com

Ecobee 3 Thermostat Review

• According to TechHive, one of the biggest strengths of the Ecobee 3 is its remote sensors, which help it measure temperature in more than just the thermostat’s physical location.
• The touchscreen interface is praised: intuitive and responsive.
• The installation is considered relatively easy if you do have a C-wire; without it, you’ll need Ecobee’s Power Extender Kit (PEK), which makes things more complex.
• In his review, the reviewer from PropelRC reported energy savings of about 18–22% on heating/cooling costs with 6 months of usage vs. a prior (non-smart) thermostat.
• On the downside: some users report Wi-Fi connectivity issues, with the thermostat losing connection every few weeks.
• The product is now somewhat “legacy”: it has been discontinued in favor of newer models, which means new units are less common.
• Overall verdict (from multiple reviewers): Ecobee 3 remains a strong choice if you want multi-room sensing (via remote sensors) and are okay with its age.

Ecobee 3 Specs & Features

Here are the key specs and features of the Ecobee 3, based on its user manual and expert reviews:

• Display: 3.5″ capacitive touchscreen.
• Power: 24VAC system required. If there is no C-wire at the thermostat, a PEK (Power Extender Kit) is included to provide “virtual” C-wire.
• Remote Sensors: Supports Ecobee remote temperature/motion sensors; these sensors help with detecting occupancy and temperature in different rooms.
• Smart Home Integration: Works with Amazon Alexa (via separate Echo / voice device), Apple HomeKit, SmartThings, IFTTT.
• Geofencing / Away Detection: Uses motion detection (from main unit + sensors) + optionally can integrate with phone/IFTTT to detect when you’re home or away.
• Energy Reports: The thermostat tracks HVAC run times and usage, and Ecobee generates HomeIQ / energy usage reports (for heating and cooling).
• HVAC Compatibility: Compatible with many 24V HVAC systems, including support for accessories (humidifier, ventilator) depending on wiring.
• Warranty: Ecobee 3 comes with a 3-year warranty (per some sources).

Ecobee 3 Installation Guide (C-Wire)

Here’s a breakdown of how to install the Ecobee 3, particularly focusing on the C-wire / no-C-wire scenario:

1. Turn off power: Shut down power to your HVAC system at the breaker before working with thermostat wires.
2. Label your wires: Remove your old thermostat, take a picture of its wiring, and label each wire (Ecobee provides stickers for this).
3. Check for C-wire:
   • If you already have a wire labeled “C” (common) in your existing thermostat wiring, connect it to C on the Ecobee backplate.
   • If no C-wire, install the Power Extender Kit (PEK): you must install the PEK at your HVAC control board, wire it appropriately, then connect the existing wires to the Ecobee base as per the manual.
4. Mount the Ecobee base plate: Use the built-in level, screw it into wall, feed the wires through, and connect each labeled wire to the correct terminal.
5. Attach the thermostat unit: Once wiring is done, gently snap / clip the Ecobee onto the base plate.
6. Restore power & setup: Turn the HVAC power back on. The Ecobee will boot, and you’ll be prompted on screen to configure your system type, select remote sensors, and connect to Wi-Fi.

C-wire advice / common pitfalls:

• Without a proper C-wire, not using PEK can lead to power issues or thermostat not powering on.
• Some users report PEK installation is the trickiest part because it requires working at the HVAC control board.
• Make sure to label wires before removing old thermostat; mismatched wiring can cause errors.

Ecobee 3 vs Ecobee 4 — Comparison

Here are the key differences (and similarities) between Ecobee 3 and Ecobee 4, based on expert sources:

Bottom line: If you want built-in Alexa on the thermostat itself, Ecobee 4 is the better choice. If you’re okay using a separate smart speaker (or already own one), Ecobee 3 gives most of the same core thermostat benefits without the built-in voice hardware.

Ecobee 3 Energy Savings Report

Users (e.g., in the PropelRC review) saw 18–22% savings on heating/cooling costs over a 6-month period compared to their older non-smart thermostat.

The Ecobee app provides energy usage reports (sometimes called HomeIQ) that show how much HVAC runtime was used, when, and approximate cost, giving insight into savings.

According to Automated Outlet, Ecobee claims up to 23% energy savings under certain conditions.

Note: Real savings vary widely depending on climate, how well the thermostat schedule is optimized, sensor placement, and how often you’re away from home.

Is Ecobee 3 Still Supported in 2025?

• Yes — according to reports, Ecobee continues to support the Ecobee 3, even though it’s an older model.
• Ecobee’s decision to discontinue some very old legacy thermostats does not include the Ecobee 3, per these sources.
• That said, being a legacy model means:
  • New hardware production is likely limited / discontinued.
  • Over time, firmware and cloud feature support may change (though as of now it’s still supported).
  • If you buy a used or refurbished Ecobee 3, check its firmware version & whether it’s already linked to another Ecobee account; that could affect usability.

Ecobee 3 Smart Home Integrations (HomeKit, Alexa, Google Assistant)

Other Integrations: Also works with SmartThings, IFTTT, and other automation platforms.

Apple HomeKit: Full integration is supported. You can control the thermostat via Siri, set up HomeKit automations, and use it in Apple Home scenes.

Amazon Alexa: Works — but via external Alexa devices. The Ecobee 3 itself has no built-in speaker / mic. You use an Echo (or similar) to send voice commands to Ecobee.

Google Assistant: Supported. You can link your Ecobee account in the Google Home app, and then use Google Assistant (or Google Home devices) to control the thermostat (e.g., set temperature).

Ecobee 3 Compatibility and Integrations

Ecobee 3 historically supported mainstream smart home ecosystems:

• Amazon Alexa — voice control and routines.
• Apple HomeKit — full integration for iPhone, Siri voice control, and home automations.
• Google Assistant — voice control and routines.
• SmartThings / IFTTT — connect to broader home automation flows.

Installation Guide (step-by-step overview)

• Gather tools: screwdriver, voltage tester, drill for anchors if needed.
• Turn HVAC power off at the breaker or furnace switch.
• Remove old thermostat and label wires (Ecobee app provides wire detection).
• Mount Ecobee backplate to wall, feed wires through and attach to correct terminals.
• Attach thermostat to backplate.
• Power on HVAC and follow on-screen setup to connect to Wi-Fi and Ecobee account.
• Pair remote sensors via the app and place them in target rooms.
• Configure schedule, geofencing, and integrations.

If you lack a C-wire, consult the Ecobee Power Extender Kit instructions or hire a pro. Improper wiring can damage HVAC equipment — when in doubt, call an HVAC technician.

Common Troubleshooting and Fixes

Firmware stuck or app issues: ensure remote connectivity; if cloud services are down or the device is a very old legacy unit, some cloud features may be affected

Thermostat not powering on: check C-wire, Power Extender Kit, and system fuse.

Sensors not pairing: replace sensor batteries, ensure proximity during pairing, and re-try pairing from the app.

Wi-Fi dropouts: confirm router settings (2.4GHz vs 5GHz), distance, and any MAC filtering.

System short cycling or frequent run times: check thermostat placement (avoid direct sun or heat sources) and verify sensor placement.

Support and Lifecycle — is the Ecobee 3 Still Supported?

Ecobee has a history of supporting many of its devices through firmware and cloud updates, but like all smart home manufacturers, it phases out older models over time. Ecobee has publicly announced end-of-server connectivity for some legacy products in the past (which affects cloud features, remote access, and firmware updates). Before purchasing a used Ecobee 3 or relying on cloud-based features, check Ecobee’s official support pages for the current support status of specific models.

Buying Advice — Should you Buy an Ecobee 3 today?

• New vs Used: Because the Ecobee 3 is an older model (initial releases date back several years), buying new may be rare; used units can be cheaper but check for firmware and account locks. If you want the newest integrations (Alexa built-in, Matter support in some ecosystems, or longer guaranteed firmware support), consider newer Ecobee models.
• If you need sensors: The Ecobee 3 still offers strong value if multi-room sensing is a priority.
• If you want on-device voice: Opt for more recent Ecobee models with built-in Alexa.
• For long-term security & updates: Newer models may offer a longer support horizon.

Ecobee 3 Pros & Cons

Pros

• Multi-room comfort with remote sensors.
• Mature ecosystem with many integrations.
• Proven track record for energy savings in many households.

Cons

• Older hardware compared to current Ecobee models (fewer built-in voice features).
• Possible shorter remaining update/support lifetime depending on model and Ecobee policy.
• If buying used, watch for firmware/account activation locks and warranty gaps.

Frequently Asked Questions (FAQs)

Q1: How many remote sensors does the Ecobee 3 support?
A: Ecobee historically supported a large number of sensors; the Ecobee 3 was promoted as supporting up to 32 remote sensors. This multi-sensor capability is a major selling point.

Q2: Does the Ecobee 3 require a C-wire?
A: Ecobee recommends a C-wire for stable power. If you don’t have one, Ecobee provides a Power Extender Kit (or you can use an adapter/installer solution), but installing a proper C-wire is the most reliable route.

Q3: Is the Ecobee 3 compatible with Alexa, HomeKit and Google Assistant?
A: Yes — Ecobee 3 historically integrated with major smart home platforms including Amazon Alexa, Apple HomeKit, and Google Assistant, though features can vary with firmware.

Q4: Is Ecobee 3 still supported by Ecobee (firmware updates and cloud)?
A: Support varies by model and company lifecycle decisions. Ecobee has discontinued server connectivity for certain legacy devices in the past, which removed cloud features and firmware updates for those specific legacy units. Always check Ecobee’s official support pages for current status of the Ecobee 3.

Q5: Can I replace the Ecobee 3 with a newer Ecobee model?
A: Yes — Ecobee offers several newer thermostats (e.g., Smart Thermostat Premium, Smart Thermostat Essential) that act as direct upgrades with improved hardware, voice features, and ongoing support.

Q6: Are there rebates for installing an Ecobee 3?
A: Many utility companies offer rebates for smart thermostat installations — check local incentive portals. Availability varies by region and utility.

Summary

The Ecobee 3 represents an important chapter in smart thermostat evolution: sensor-aware temperature control, clean mobile app management, and broad integrations. For homeowners who prioritize multi-room comfort and compatibility with HomeKit/Alexa/Google Assistant, Ecobee 3 remains a useful option — especially if you can get it at a good price and verify support status. However, those seeking built-in voice assistants, Matter compatibility, or the longest possible firmware support horizon should evaluate the newer Ecobee models such as the Smart Thermostat Premium or the Smart Thermostat Essential which Ecobee launched as a successor in the lower-cost segment.

Conclusion

If your goal is to improve home comfort by moving from a basic programmable thermostat to a sensor-aware smart thermostat, the Ecobee 3 still checks many boxes: remote sensors, scheduling intelligence, and a mature app ecosystem. But as with any smart home purchase, factor in the product’s age, support lifecycle, and whether newer Ecobee models better match your needs for voice, integrations, and long-term firmware support. For installers and content creators, focus articles and guides on practical “how-tos” (C-wire wiring, sensor placement, geofencing setup) and clear comparisons versus newer models to capture high-intent search traffic.
