When it comes to upgrading heating and cooling systems in American homes, the Nest thermostat has become one of the most popular smart thermostats. However, the most confusing step for many homeowners is the color code wire Nest thermostat wiring diagram. Unlike traditional thermostats, which often followed a basic pattern, Nest thermostats can connect with different HVAC systems, two-stage heating, heat pumps, and dual fuel systems.

Understanding thermostat wire colors and how they connect to your Nest baseplate is crucial for proper installation. Miswiring may cause your HVAC system to malfunction or, worse, damage expensive equipment. That’s why learning the color code wire Nest thermostat wiring diagram is essential for every American DIY enthusiast, HVAC technician, and smart home installer.

This article will provide a comprehensive guide covering wiring colors, diagrams, C-wire details, dual transformer systems, and frequently asked questions by Americans who are searching for reliable thermostat installation help.

Understanding Thermostat Wiring Basics

Before jumping into the Nest thermostat color code wiring diagram, it’s important to understand the basics of thermostat wires.

• Low-voltage thermostats (24V systems) are the most common in American households.
• Wires are color-coded but may vary depending on the installer, HVAC system, and home age.
• The Nest thermostat wiring diagram relies on these color codes to match wires with correct terminals.

Common Thermostat Wire Colors and Functions

Here is the standard thermostat color code most often found in U.S. homes:

Note: In older homes, wire colors may not always follow this pattern. Always check the wiring behind your old thermostat before connecting it to the Nest base.

Why Color Code Wire Matters for Nest Thermostat

The Nest thermostat is designed to auto-detect connected wires when installed correctly. If wires are mismatched:

• The Nest may not power on (common with missing C-wire).
• Heating may activate instead of cooling.
• The fan may run continuously.
• The Nest may display an error message like “No power to R wire.”

That’s why following the color code wire Nest thermostat wiring diagram is essential.

Step-By-Step Nest Thermostat Wiring Guide

1. Turn Off Power

Before starting, switch off the breaker connected to your HVAC system.

2. Remove Old Thermostat

Take a picture of your old thermostat wiring. This acts as a reference in case wire colors don’t match.

3. Identify Wires

Match each wire color with its function (using the chart above).

4. Insert Wires into Nest Base

The Nest baseplate has spring-loaded connectors. Insert each wire into the correct labeled terminal.

5. Attach Display

Snap the Nest display onto the base and restore power.

6. Setup with Nest App

Follow the on-screen instructions in the Nest app to complete setup.

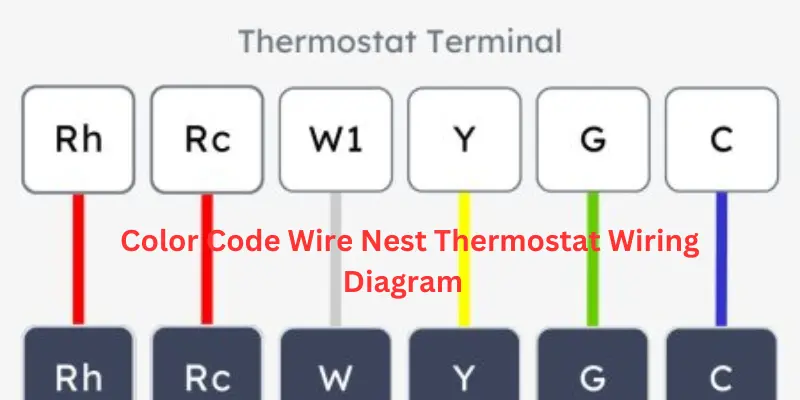

Color Code Wire Nest Thermostat Wiring Diagram Examples

Single-Stage Heating and Cooling (Most Common in U.S. Homes)

• Red (R) → R terminal
• White (W) → W1 terminal
• Yellow (Y) → Y1 terminal
• Green (G) → G terminal
• Blue/Black (C) → C terminal (if available)

Heat Pump System

• Red (R) → R terminal
• Orange (O/B) → O/B terminal
• Yellow (Y) → Y1 terminal
• Green (G) → G terminal
• White (Aux/E) → W1 terminal
• Blue/Black (C) → C terminal

Two-Transformer Systems (Separate Heat & Cool)

• Rh → Heating transformer power
• Rc → Cooling transformer power
• Jumper not needed on Nest (it detects both).

Does the Nest Thermostat Need a C-Wire

This is one of the most searched questions by Americans.

• The Nest thermostat can work without a C-wire by using power stealing from other wires.
• However, this often causes issues like short battery life, Wi-Fi disconnection, or the HVAC fan randomly turning on.
• For stable operation, it’s recommended to install a C-wire or use a Nest Power Connector (an alternative to running new wires).

Wiring Scenarios Americans Commonly Face

• Old Homes Without a C-Wire – Many older U.S. homes lack a C-wire, causing Nest to drain battery quickly.
• Dual Fuel Systems – Homes with heat pumps plus a furnace need extra care when wiring the O/B terminal.
• High-Efficiency Systems – Two-stage or variable speed HVACs may require Y2/W2 wires for advanced Nest features.
• Boilers and Radiant Heat – Often require only two wires (R and W). Nest can work but may need a C-wire adapter.

How Do I Tell Which Wire Goes to R, Rh, Rc Terminals

The R terminal provides 24-volt power from the HVAC transformer. If your system uses a single transformer, you’ll usually connect the Red wire to R and use a jumper to Rh or Rc (or Nest handles this electronically).

• Rh: Heating power input from a dedicated heating transformer.
• Rc: Cooling power input from a dedicated cooling transformer.
  Most modern U.S. homes have one transformer, so you’ll only use R (or Rc), while Nest automatically manages Rh/Rc internally.

What Is The Difference Between O, B, O/B Wires In A Nest Setup

• O wire: Used to control the reversing valve in a heat pump, switching the system into cooling mode.
• B wire: Also controls the reversing valve but switches the system into heating mode.
• O/B wire: On Nest, this combined option allows you to configure the reversing valve depending on whether your system energizes in heating or cooling.

How Many Wires Do I Need To Install a Nest Thermostat

• Basic cooling/heating systems: Usually need at least 2–4 wires (R, W, Y, G).
• Systems with a C-wire: At least 5 wires (R, W, Y, G, C).
• Heat pump systems: May require O/B wire plus the above.
  More advanced systems (multi-stage or dual fuel) can use up to 8+ wires.

Can I Install Nest Without A Common Wire

Yes, Nest can often run without a C-wire by drawing power from other wires (like R and Y). However, some systems may show errors or lose Wi-Fi connection without a C-wire. Google recommends installing a C-wire or Nest Power Connector for stable performance.

What To Do If Wire Colors Don’t Match Standard Code

Always rely on wire connections at the HVAC control board, not just the color. For example, a yellow wire might not always be cooling (Y). Take a picture of your control board wiring and match each terminal to the Nest app, ignoring color if necessary.

How To Wire A Nest Thermostat For Heat Pump Vs Conventional System

• Conventional system: Connect R, W, Y, G, C (if available).
• Heat pump system: Connect R, Y, G, O/B, C, and sometimes Aux/E (emergency heat).
  The Nest app will guide you step-by-step depending on your selected system type.

Which Nest Thermostat Models Support Certain Wiring (E.g. Nest Learning, Nest Thermostat E)

• Nest Learning Thermostat (all gens): Supports the widest range of wiring, including multi-stage systems, heat pumps, humidifiers, and dehumidifiers.
• Nest Thermostat E: Supports fewer system types but works for most standard single-stage and some heat pump systems.
• 2020 Nest Thermostat: More affordable, supports most common HVAC setups, but fewer advanced features than Learning.

What Warning/Error Codes Appear Due To Wiring Issues On a Nest Thermostat

Common Nest error codes include:

• E73: No power to Rc wire.
• E74: No power to Rh wire.
• N72: No power to Rc detected.
• E195: No power to equipment.
• N260: C-wire or Nest Power Connector required.

How To Use The Nest Compatibility Checker To Get a Wiring Diagram

Go to the Google Nest Compatibility Checker online. Enter your thermostat wire labels, and the tool generates a custom wiring diagram. The Nest app also walks you through the same process when setting up.

How To Identify Thermostat Wires At The Control Board

Turn off HVAC power, open the furnace or air handler, and look at the wire terminals. Each terminal (R, W, Y, G, C, O/B, Aux/E) will have a wire connected. Use these labels rather than just color to confirm connections.

Why Is The Thermostat Showing No Power, Missing Wire Error After Installing Nest?

This usually happens if:

• The C-wire is missing or not providing power.
• A wire is loose or miswired at the control board or thermostat.
• The HVAC system’s fuse is blown.
  Checking connections and ensuring the system provides 24V power often resolves the issue.

Can I Reuse Old Wiring? Are Jumper Wires Needed

Yes, old thermostat wiring can usually be reused if it’s in good condition. Unlike traditional thermostats, Nest does not require jumper wires between Rc/Rh because it manages that internally.

Does The Nest Thermostat Support Multi-Stage Heating/Cooling Wiring (Y2, W2, Dual Fuel, Etc.)

Yes. The Nest Learning Thermostat supports multi-stage heating (W2, W3), cooling (Y2), and dual fuel systems. The Nest Thermostat E supports only single-stage heating/cooling and some heat pump setups. Always check compatibility before wiring.

Safety Tips While Wiring a Nest Thermostat

• Always shut off breaker power before handling wires.
• Double-check each wire before inserting into Nest.
• Don’t twist wires together or leave copper exposed.
• When in doubt, hire a licensed HVAC technician.

Nest Thermostat Wiring Comparison Table

Quick Takeaways for Homeowners:

• Most U.S. homes have conventional single-stage systems (3–5 wires).
• Heat pumps require O/B wiring, which confuses many DIY installers.
• Multi-stage and dual fuel setups need the Nest Learning Thermostat for full support.
• The Nest app provides a personalized wiring diagram based on entered wire labels.

FAQs – Most Asked by Americans

1. How to add a C-wire for Nest thermostat?

You can either run a new wire from your furnace control board or install the Nest Power Connector to simulate a C-wire.

2. Does my Nest thermostat need a C-wire?

It can run without one, but having a C-wire ensures stable performance and prevents random shutdowns.

3. Nest thermostat wiring to two transformers – how does it work?

The Nest can detect Rh and Rc separately. Simply connect the heating transformer wire to Rh and cooling transformer wire to Rc.

4. How to wire Nest thermostat Rh Rc?

If you only have one transformer, connect the R wire to either Rc or Rh. Nest internally manages the jumper.

5. What if my wire colors don’t match the diagram?

Use the labels behind your old thermostat as a guide. Don’t rely on colors alone

Summary

For Americans upgrading to smart home technology, the color code wire Nest thermostat wiring diagram is one of the most searched and discussed topics. By understanding the meaning of each wire color, following proper wiring diagrams, and knowing when a C-wire is necessary, you can avoid costly mistakes and enjoy full comfort control with your Nest thermostat.

Conclusion

The Nest thermostat wiring color codes may seem confusing at first, but once you understand their functions and the proper connection to terminals, installation becomes straightforward. Whether you’re wiring a single-stage system, heat pump, or dual transformer setup, this guide ensures you get it right.

By following the color code wire Nest thermostat wiring diagram, American homeowners can safely install and troubleshoot their Nest thermostat, ensuring long-term efficiency and comfort.
