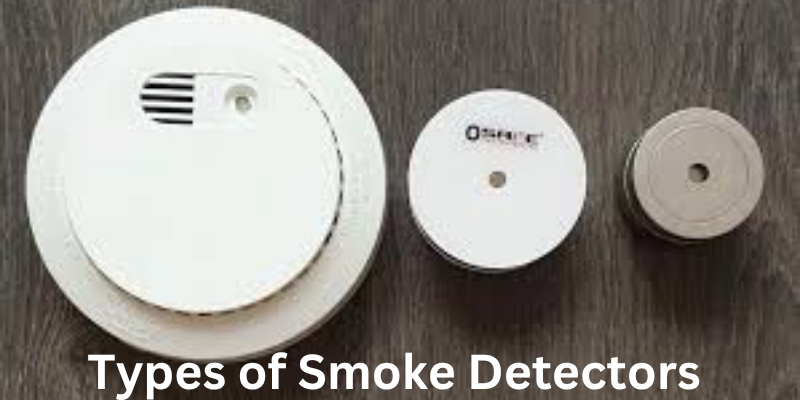

Types of Smoke Detectors: Comprehensive Guide for Residential and Commercial Safety

Smoke detectors are critical components in fire safety systems, offering early alerts to prevent injury, death, and property damage. Choosing the right smoke detector depends on the application—whether it’s for home or business use, specific environments, or required responsiveness to various fire types.

In this article, we’ll explore the main types of smoke detectors, their technologies, features, and applications in both residential smoke detectors and commercial smoke detectors.

Two Primary Types of Smoke Detectors

There are two primary types of smoke detectors: Ionization and photoelectric. Additionally, combination smoke detectors, which incorporate both technologies, are also available, as are heat detectors and aspirating smoke detectors.

Here’s a breakdown:

• Ionization Smoke Detectors: These detectors are generally more responsive to fast-flaming fires that produce little smoke, according to Nationwide Children’s Hospital. They use a small amount of radioactive material to ionize the air, and the alarm triggers when smoke disrupts this ionization.
• Photoelectric Smoke Detectors: These are more effective at detecting smoldering fires that produce a lot of smoke, like those from overheated wiring or smoldering cigarettes, says Cove Security. They use a light beam and a sensor; smoke entering the chamber scatters the light, triggering the alarm.
• Combination Smoke Detectors: These detectors combine both ionization and photoelectric sensors, providing a more comprehensive approach to fire detection and responding to a wider range of fire types.
• Heat Detectors: These detectors sense heat rather than smoke, and are often used in areas where smoke detectors may not be ideal, such as garages.
• Aspirating Smoke Detectors (ASD): These are highly sensitive, active smoke detection systems that draw air samples through a network of pipes to detect smoke.

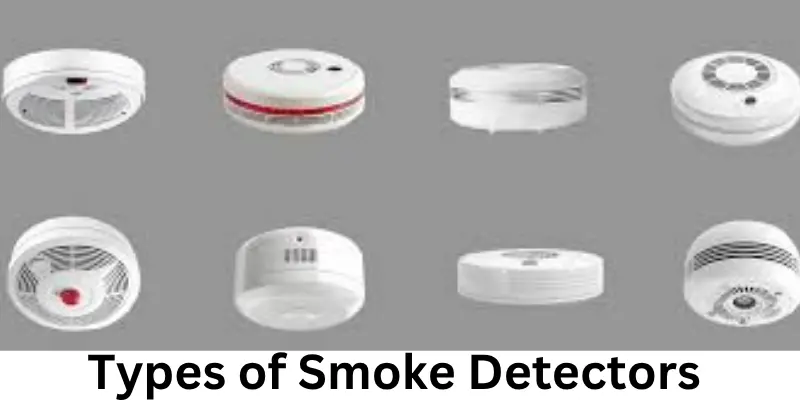

Types of Smoke Detectors

See further breakdown

Ionization Smoke Detector

An ionization smoke detector is best at detecting fast-flaming fires that produce minimal visible smoke. It uses a small amount of radioactive material between two electrically charged plates, which ionizes the air and creates a current. When smoke enters the chamber, it disrupts this current, triggering the alarm.

Best suited for: Kitchens, areas with flammable liquids, and fast-burning material storage.

Photoelectric Smoke Detector

A photoelectric smoke detector, also known as an optical smoke detector, is more responsive to slow-smoldering fires that produce a lot of visible smoke. It contains a light source aimed away from a sensor. When smoke enters, it scatters the light onto the sensor, activating the alarm.

Best suited for: Living rooms, bedrooms, and areas prone to smoldering fires.

Dual-Sensor Smoke Detector

The dual-sensor smoke detector combines both ionization and photoelectric technologies, providing a broader range of fire detection. These devices offer enhanced protection by quickly responding to both flaming and smoldering fires.

Best suited for: Homes and offices looking for comprehensive fire detection coverage.

Heat Detector

Although not a smoke detector per se, a heat detector is often included in fire safety systems. It activates when it detects a rise in temperature beyond a preset threshold. This is ideal in environments where smoke or dust could cause false alarms in regular smoke detectors.

Best suited for: Garages, attics, industrial kitchens, and dusty environments.

Smart Smoke Detector

Smart smoke detectors are Wi-Fi enabled and can be connected to mobile devices, allowing users to receive smoke detector alerts even when they’re away from home. They often come with features such as voice alerts, battery health notifications, and integration with smart home systems.

Best suited for: Modern smart homes and tech-integrated offices.

Battery Operated Smoke Detector

The battery operated smoke detectors run solely on batteries and are ideal for places without electrical wiring. Some models include a 10-year smoke detector design, using long-life lithium batteries, reducing the need for frequent battery changes.

Best suited for: Rental properties, older homes, temporary buildings, and mobile homes.

Hardwired Smoke Detector

A hardwired smoke detector is connected directly to the building’s electrical system and usually includes a battery backup for power outages. These detectors are often UL-listed smoke detectors, ensuring compliance with safety standards.

Best suited for: Newer homes and commercial buildings requiring interconnected systems.

Wireless Smoke Detector

Wireless smoke detectors communicate with each other and with a central panel through radio frequency. They are easy to install and ideal for expanding existing systems without new wiring.

Best suited for: Retrofitting existing homes or businesses with additional fire detection.

CO and Smoke Detector Combo

A CO and smoke detector combo offers protection against both carbon monoxide poisoning and fire. These all-in-one units use advanced smoke detector sensors and separate alert systems to distinguish between fire and CO threats.

Best suited for: Bedrooms, basements, and areas with fuel-burning appliances.

Working Principle of Smoke Detectors

The smoke detector working principle varies by type:

• Ionization detectors react to particles that disrupt an electric current.
• Photoelectric detectors use light refraction from smoke particles.
• Heat detectors respond to temperature rise.
• Smart detectors integrate sensors with digital connectivity and intelligent response systems.

Understanding these principles helps in choosing the right detector for each environment.

Installation and Maintenance

Smoke detector installation should follow local codes and manufacturer instructions:

• Mount on ceilings or high on walls.
• Keep away from vents, fans, and windows.
• Interconnect units for larger buildings.

Smoke detector maintenance includes:

• Testing monthly.
• Replacing batteries annually unless using a 10-year smoke detector.
• Cleaning to prevent dust buildup.
• Replacing the entire unit every 10 years.

Applications: Residential vs. Commercial Smoke Detectors

Residential Smoke Detectors:

• Typically battery-operated or hardwired.
• Designed for lower coverage areas.
• Emphasis on ease of use and low maintenance.

Commercial Smoke Detectors:

• Often hardwired or wireless with centralized monitoring.
• Larger coverage with integrated heat detectors and smart technology.
• Compliance with fire codes and insurance requirements.

Best Smoke Detector for Kitchen Use

The best smoke detector for kitchens is a photoelectric smoke detector with a hush button or a heat detector. Photoelectric models are less prone to false alarms from cooking smoke or steam. Some smart detectors also allow sensitivity adjustment to reduce nuisance alarms.

Recommended types:

• Photoelectric smoke detector
• Heat detector (as supplemental)
• Smart detector with alarm delay or hush feature

Difference Between Ionization and Photoelectric Smoke Detectors

Advantages of Dual-Sensor Smoke Detectors

• Combines ionization and photoelectric technologies.
• Provides broad-spectrum fire detection (both fast and slow-burning fires).
• Enhances safety and early warning.
• Reduces risk of missing certain fire types.
• Ideal for multi-room coverage or large homes.

How Does a Photoelectric Smoke Detector Work?

A photoelectric smoke detector uses a light source and a light-sensitive sensor inside a chamber. In normal conditions, the beam doesn’t hit the sensor. When smoke enters, it scatters the light onto the sensor, which triggers the alarm.

Key benefit: Quick response to smoldering fires (common in furniture or electrical faults).

Where to Install Smoke Detectors in a Home

• Inside each bedroom
• Outside each sleeping area (e.g., hallways)
• On every level of the home (including basement)
• In stairways and near exits
• Near the kitchen, but at least 10 feet away from cooking appliances
• Not in humid areas like bathrooms

Installation Tip: Mount on the ceiling or high on a wall, away from vents or windows.

Smoke Detector with Carbon Monoxide Sensor

A combination smoke and CO detector detects both fire and carbon monoxide. These are ideal for:

• Bedrooms (where people sleep)
• Living rooms
• Basements with fuel-burning appliances

Features may include:

• Voice alerts (“Fire!” or “Carbon Monoxide!”)
• Digital CO level display
• Interconnectivity or smart app alerts

How to Test a Smoke Detector

• Press and hold the test button on the detector.
• A loud alarm should sound (check all interconnected units).
• Test monthly for reliability.
• For hardwired models, shut off power before removing if needed.
• Replace units that fail testing or show no response.

Note: Use smoke-simulation spray for advanced functional testing.

What Is the Most Reliable Smoke Detector?

The most reliable smoke detectors are:

• Dual-sensor (ionization + photoelectric) models
• Smart smoke detectors (e.g., Nest Protect, Kidde Smart)
• UL-listed and NFPA-compliant devices
• Hardwired detectors with battery backup

Brands to consider: First Alert, Kidde, Nest, X-Sense, and BRK.

Pros and Cons of Wireless Smoke Detectors

How to Choose the Right Type of Smoke Detector for Your Home

• Photoelectric for bedrooms, living rooms, and kitchens.
• Ionization for hallways and areas with quick fire risk.
• Dual-sensor for comprehensive coverage.
• Smart detectors for remote alerts and interconnectivity.
• Combo detectors for smoke + carbon monoxide.
• Choose UL-certified and 10-year battery options for reliability and low maintenance.

Smoke Detector Suitable for Bedrooms and Living Rooms

• Photoelectric smoke detectors are best for these areas as they detect smoldering fires, common in bedding and furniture.
• Consider smart detectors for added safety at night.
• Combo smoke/CO alarms are also ideal for bedrooms.

Smart Smoke Detector with Mobile Alerts

Smart smoke detectors (e.g., Google Nest Protect, X-Sense XS01-WR, First Alert Onelink) offer:

• Mobile notifications via Wi-Fi
• Battery and status alerts
• Voice alerts
• Integration with smart home systems
• Remote silencing and interconnectivity

Perfect for modern homes or travel-prone users.

Comparison of Smoke Detectors for Residential and Commercial Use

Smoke Detectors That Meet NFPA and UL Standards

• Must be UL 217 certified (U.S. standard)
• Must follow NFPA 72 – National Fire Alarm and Signaling Code
• EN 14604 standard in Europe
• Look for the UL logo, or mention of NFPA compliance on packaging
• Top brands like First Alert, Kidde, and BRK follow these standards

Low-Maintenance 10-Year Battery Smoke Detectors

These detectors have sealed lithium batteries that:

• Last for 10 years without replacement
• Reduce need for battery changes
• Have end-of-life chirps when battery expires
• Are tamper-resistant

Best for: Elderly residents, landlords, remote areas, or hard-to-access locations.

Examples:

• First Alert PR710
• Kidde i9010
• X-Sense SD03

FAQ,S

Major Components of a Smoke Detector

A standard smoke detector includes the following key components:

• Sensing Chamber – Detects smoke particles (ionization or photoelectric).
• Sensor (Ionization or Photoelectric) – Core technology to sense fire particles.
• Power Source – Battery (9V, AA, lithium) or hardwired with battery backup.
• Alarm Horn – Emits a loud alert sound (typically 85 dB or higher).
• LED Indicator – Shows device status (power on, low battery, alarm).
• Test Button – Used for functionality checks.
• Cover/Housing – Protects internal components.
• Circuit Board – Processes sensor data and triggers alarms.

Guide to Use a Smoke Detector

To properly use a smoke detector:

1. Choose the right type (ionization, photoelectric, dual-sensor).
2. Install detectors on ceilings or high on walls in key areas (bedrooms, hallways, kitchen).
3. Test monthly using the test button.
4. Replace batteries annually (unless it’s a 10-year sealed model).
5. Clean regularly to remove dust or cobwebs.
6. Replace the unit every 10 years as sensors degrade over time.
7. Respond immediately to alarms — evacuate and call emergency services.

Requirement of a Smoke Detector

Smoke detectors are legally and practically required for:

• Residential Homes – At least one per floor, and one inside each sleeping area.
• Commercial Buildings – As per fire safety regulations and occupancy type.
• Apartments/Rental Units – Mandated by law in most regions.
• Schools, Hospitals, Hotels – Subject to building codes and fire department rules.
• Construction Codes – New homes require interconnected smoke detectors.

Limitation of Smoke Detectors

Some known limitations include:

• False Alarms – Especially ionization detectors near kitchens or bathrooms.
• Limited CO/Gas Detection – Smoke detectors don’t detect carbon monoxide unless combined.
• Battery Failure – Units may fail if batteries die and aren’t replaced.
• Sensor Aging – Sensitivity reduces over time.
• Placement Sensitivity – Poor installation reduces effectiveness.
• No Internet Connectivity – Basic models don’t notify users remotely.

How to Install a Smoke Detector

Steps to install:

1. Choose location (ceiling is ideal, at least 10 feet from kitchen appliances).
2. Mark drill holes using the mounting base.
3. Drill and insert anchors, then screw the base in place.
4. Attach the smoke detector to the base.
5. Insert battery or connect wires (for hardwired models).
6. Test using the test button.

Height to Install a Smoke Detector

• Ceiling Installation: Minimum 4 inches away from the nearest wall.
• Wall Installation: Place 4 to 12 inches below the ceiling.
• Avoid corners, air vents, fans, or windows — these can interfere with smoke flow.

International Rules That Govern Smoke Detectors

Key international standards and codes include:

• NFPA 72 (USA) – National Fire Alarm and Signaling Code.
• EN 14604 (EU) – Standard for residential smoke alarm devices.
• UL 217 – Safety standard for smoke alarms in the U.S.
• BS 5839 (UK) – Code of practice for fire detection systems in buildings.
• AS 3786 (Australia) – Australian standard for smoke alarms.
• International Building Code (IBC) – References smoke alarm installation requirements.

What Are the Two Types of Smoke Detection Technologies?

1. Ionization Technology
   • Uses radioactive material to detect small particles from fast-flaming fires.
2. Photoelectric Technology
   • Uses a light beam and sensor to detect larger particles from smoldering fires.

What Are the 3 Types of Smoke Detectors?

1. Ionization Smoke Detector – Quick detection of flaming fires.
2. Photoelectric Smoke Detector – Better at detecting smoldering fires.
3. Dual-Sensor Smoke Detector – Combines both technologies for broad detection.

What Is a Photoelectric Smoke Detector?

A photoelectric smoke detector uses a light beam and a light sensor inside a sensing chamber. When smoke enters, it scatters the light, which is detected by the sensor, triggering the alarm. It’s best for detecting slow-burning, smoldering fires, often occurring in bedrooms or living rooms.

Who Installs Smoke Detectors?

• Homeowners – Can self-install battery-operated or plug-in units.
• Licensed Electricians – Required for hardwired installations.
• Fire Departments/Community Programs – Often provide free installation for seniors, disabled, or low-income families.
• Landlords – Legally responsible for installation and maintenance in rental properties.

Free Smoke Detectors

Free smoke detectors may be available from:

• Local Fire Departments – Many run community programs offering free alarms.
• Red Cross (USA) – Through the “Sound the Alarm” campaign.
• Government Subsidies – Some regions have fire safety grants.
• NGOs & Housing Charities – Offer support for low-income households.
• Insurance Providers – Some offer discounts or provide detectors to policyholders.

Summary

Smoke detectors play a vital role in early fire detection and life safety. The key types of smoke detectors include:

• Ionization smoke detector for fast flames
• Photoelectric smoke detector for smoldering fires
• Dual-sensor smoke detector for all-in-one protection
• Heat detector for high-heat areas
• Smart smoke detector for digital homes
• Battery operated smoke detector for flexible installation
• Hardwired smoke detector for reliable power
• Wireless smoke detector for easy system expansion
• CO and smoke detector combo for dual-threat protection

Each detector type has unique benefits tailored to specific environments and fire risks.

Conclusion

Choosing the right smoke detector is critical for personal safety and property protection. Whether you’re securing a single home, a multi-unit complex, or a commercial facility, understanding the types of smoke detectors available—and their strengths—ensures optimal fire safety coverage. Regular smoke detector maintenance, proper installation, and use of UL-listed smoke detectors further enhance their reliability. Invest in the right combination of sensors and technologies to stay protected from unseen dangers and ensure rapid smoke detector alerts when seconds count.
