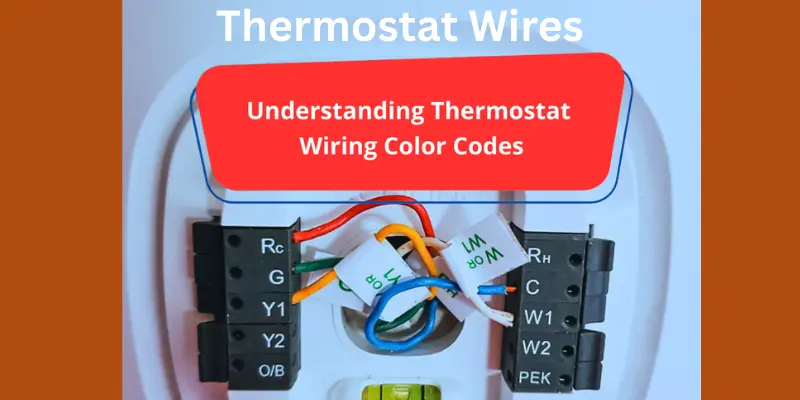

Thermostat Wires: Explained Color Codes, Types and Guide for Americans

In almost every American home, the thermostat is the brain of the heating and cooling system. But behind that sleek digital screen—or even the old manual dial—lies something small yet essential: thermostat wires. These low-voltage wires are the hidden highways that carry signals between your thermostat and your HVAC system, telling it when to heat, cool, or simply circulate air. Ring Thermostat is also part of this family.

For many U.S. homeowners, questions like “What do thermostat wire colors mean?”, “Do I need a C-wire for a smart thermostat?”, or “How do I wire my thermostat to the furnace?” come up the moment they think about upgrading their HVAC controls. With smart thermostats like Ecobee, Nest, and Honeywell becoming increasingly popular across the United States, understanding thermostat wiring is no longer just for electricians—DIY enthusiasts and everyday homeowners are diving into it too.

In this guide, we’ll break down everything you need to know about thermostat wires—from wire types and color codes to installation tips, troubleshooting, and future-proofing your home for smart HVAC technology. Whether you’re wiring a new thermostat in your suburban house, replacing an old unit in a New York apartment, or troubleshooting a heat pump in a Florida home, this article has you covered.

What Is Thermostat Wire?

A thermostat wire is a special type of low-voltage electrical wire used to connect your home’s thermostat to the heating, ventilation, and air conditioning (HVAC) system. Unlike standard household wiring that carries 120 or 240 volts, thermostat wires typically carry 24 volts AC (VAC), which is safe for low-voltage control circuits.

In simple terms, thermostat wires are like the “messenger lines” that send signals from your thermostat to the furnace, air conditioner, or heat pump. For example, when you set your thermostat to cool at 72°F, the wire connected to the cooling terminal (Y) tells your air conditioning system to turn on.

Standard Wire Gauge

In the U.S., the most common thermostat wire size is 18-gauge (18 AWG) solid copper wire. It’s thick enough to handle the small electrical load of HVAC controls while remaining flexible for installation. Most thermostat cables come bundled with 2 to 10 individual wires, depending on how complex the system is.

• 2-wire cable – Basic heating only
• 4- or 5-wire cable – Most standard American HVAC systems
• 6- to 10-wire cable – Advanced systems with multiple heating/cooling stages or heat pumps

Thermostat Wire vs. Regular Electrical Wire

It’s important not to confuse thermostat wire with standard electrical wiring. While your outlets and lights use heavy-duty wires designed for high-voltage power, thermostat wire is designed for signal transmission only. Using the wrong type of wire can lead to system failure, short circuits, or even damage to your HVAC equipment.

Why It Matters for U.S. Homes

In American households, especially with the rise of smart thermostats like Ecobee, Nest, and Honeywell, thermostat wires are becoming more important than ever. Many modern thermostats require a C-wire (common wire) to provide constant 24V power for Wi-Fi connectivity and advanced features. If your home has older 2- or 4-wire setups, you may need an extra wire or a power adapter kit to install a new smart thermostat.

In short: Thermostat wires are the lifeline between your thermostat and your HVAC system. Understanding what they are—and what type you have—is the first step in safely wiring, upgrading, or troubleshooting your home’s heating and cooling controls.

History and Evolution of Thermostat Wires in America

Thermostat wiring has evolved dramatically in American homes:

• Early 1900s: Simple two-wire systems controlled basic furnaces. Wires were thick and uninsulated.
• 1940s–1960s: Three- and four-wire systems introduced with central air conditioning. American homes shifted toward forced-air systems.
• 1970s–1990s: Color-coded five-wire cables became standard. These supported both heating and cooling.
• 2000s–Present: Seven- and eight-wire configurations emerged to handle multi-stage systems, dual-fuel setups, and Wi-Fi smart thermostats.

Today, most American homes still rely on low-voltage (24V) 18-gauge copper wires, bundled together in protective sheathing. Even as wireless smart home technology advances, thermostat wires remain the most reliable connection between HVAC equipment and t

Thermostat Wire Types by Core Count

Thermostat wires are sold as bundles with multiple individual wires (or “cores”) inside a single cable. Each core is color-coded and serves a specific purpose. The number of wires you need depends on the type of HVAC system you have and the features you want from your thermostat.

Here’s a breakdown of the most common thermostat wire types used in American homes:

2-Wire Thermostat Cable

• Usage: Traditional heating-only systems (like a gas furnace or boiler).
• Wires:
  • R (Red) – Power from transformer (24V hot)
  • W (White) – Heat call wire
• Example: A simple on/off furnace in older U.S. homes.

3-Wire Thermostat Cable

• Usage: Heat-only systems that require a C-wire for power.
• Wires:
  • R (Red)
  • W (White)
  • C (Blue/Black) – Common wire for continuous 24V power
• Example: A boiler system with a smart thermostat upgrade.

4-Wire Thermostat Cable

• Usage: Standard heating & cooling systems without a dedicated C-wire.
• Wires:
  • R (Red) – Power
  • W (White) – Heat
  • Y (Yellow) – Cooling
  • G (Green) – Fan
• Example: Basic furnace + AC system common in suburban U.S. homes.

5-Wire Thermostat Cable (Most common today)

• Usage: Standard HVAC systems with smart thermostats.
• Wires:
  • R (Red) – Power
  • W (White) – Heat
  • Y (Yellow) – Cooling
  • G (Green) – Fan
  • C (Blue/Black) – Common wire (required for Wi-Fi/smart thermostats)
• Example: A central HVAC system with a Nest or Ecobee thermostat.

6-Wire Thermostat Cable

• Usage: More advanced systems with additional fan or heating stages.
• Extra Wire: Often used for second-stage heating (W2) or humidifier control.
• Example: Dual-stage furnaces found in larger American homes.

8-Wire Thermostat Cable

• Usage: Heat pumps or systems with multiple stages and accessories.
• Wires may include:
  • O/B (Orange/Blue) – Heat pump reversing valve
  • W2 – Second-stage heat
  • Y2 – Second-stage cooling
  • E or Aux – Emergency/auxiliary heat
• Example: A heat pump system with backup electric or gas heat.

10-Wire Thermostat Cable

• Usage: Large or commercial-grade systems with advanced zoning and multiple stages.
• Example: Rare in U.S. homes but common in office buildings or high-end custom HVAC setups.

Quick Comparison Table

Key Takeaway for U.S. Homeowners:
If you’re planning to install a smart thermostat, you’ll almost always need at least a 5-wire setup. If your home has fewer wires, you may need to add a C-wire, run new wiring, or use a power extender kit.

Wire Color Coding & Terminal Mapping

One of the most confusing parts of thermostat wiring for American homeowners is figuring out what each wire color means and which thermostat terminal it connects to. The good news? In the U.S., there’s a widely accepted industry standard for color coding thermostat wires — although there can be exceptions, especially in older homes or DIY jobs.

Below is a complete breakdown of the most common thermostat wire colors, what they do, and where they go.

Standard Thermostat Wire Color Codes in the U.S.

Important: These colors are typical in U.S. systems but not guaranteed. Always double-check your system with a multimeter or your HVAC wiring diagram before connecting.

You may also Like these posts

• Thermostat Wiring: A Safety Guide for American Homeowners
• Ring Thermostat-2025: The Complete American Guide to Ring-Compatible Smart Thermostats.
• Baby Winter Clothes : Guide for Cozy and Safe Winters

What Do Rc and Rh Mean?

Many thermostats have two red terminals:

• Rc = Red-cooling (used for AC)
• Rh = Red-heating (used for furnace)

In most modern systems, Rc and Rh are jumpered together with a small metal bridge if your system uses a single transformer. If your HVAC system has two separate transformers (one for heat, one for cool), the Rc and Rh wires will be separate.

How Wire Colors Map to Smart Thermostat Terminals (Nest, Ecobee, Honeywell)

Color Code Exceptions in U.S. Homes

While the chart above is standard, here are a few common exceptions you might see in American homes:

• Older homes may have non-standard colors (e.g., white used for cooling).
• DIY installations may have swapped wire colors due to cable shortages.
• Some installers use blue for C and black for C, depending on what’s available.
• In some heat pumps, O and B are swapped based on the manufacturer (e.g., Trane vs. Goodman).

Always label wires before disconnecting an old thermostat, or take a photo of the existing connections.

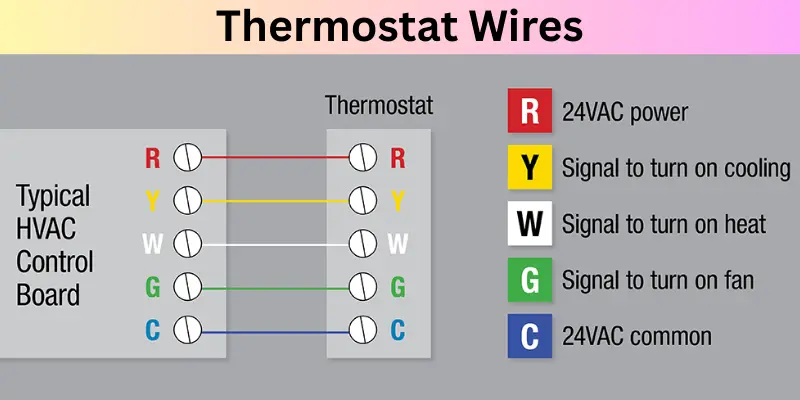

Visual Guide: Thermostat Wire Colors and Terminals

Below are visual references showing typical thermostat wire bundles and how they connect to thermostat terminals.

4

Key Takeaway for U.S. Homeowners:
Thermostat wire colors are your roadmap. But like any good map, they only help if you verify your route. Use this chart as a guide, but always confirm each wire’s purpose—especially before hooking up a smart thermostat.

Why You Need a C-Wire

One of the most common questions American homeowners ask when installing a new thermostat—especially a smart one like Nest, Ecobee, or Honeywell Home—is: “Do I need a C-wire?”

The C-wire, short for Common wire, plays a critical role in keeping your thermostat powered. Unlike traditional mechanical thermostats that worked like simple switches, modern digital and smart thermostats require a continuous flow of 24V power to run their screens, Wi-Fi connections, sensors, and advanced features.

What Exactly Does the C-Wire Do?

• It provides a dedicated return path to the HVAC control board.
• Ensures the thermostat doesn’t rely on battery-only power.
• Keeps your thermostat online 24/7, so features like scheduling, geofencing, and energy usage reports always work.

Do All Thermostats Need a C-Wire?

• Traditional programmable thermostats – Some can still operate without a C-wire because they draw minimal power.
• Smart thermostats (Nest, Ecobee, Honeywell, Emerson, etc.) – Almost all require a C-wire for stable operation. While some models can “power steal” from other wires (like the G or Y wire), this often causes issues such as:
  • HVAC fans turning on randomly
  • Wi-Fi dropping out
  • Batteries draining quickly

American Homeowner Tip

If your home doesn’t have a C-wire, you have a few options:

1. Check your furnace board – Many U.S. homes already have an unused C terminal at the control board.
2. Use a C-wire adapter kit – Popular brands sell DIY kits that create a C-wire using existing wiring.
3. Hire a licensed HVAC technician – Best option if you’re not comfortable working with low-voltage wiring.

Why It Matters in the U.S.

With energy prices fluctuating and smart thermostats saving up to 10–15% on heating and cooling bills, most American families are switching to advanced models. A reliable C-wire connection ensures your thermostat can deliver maximum energy efficiency, comfort, and peace of mind.

Installation & Wiring Best Practices

Correct thermostat wiring isn’t just about connecting wires—it’s about safety, HVAC efficiency, and long-term reliability. Here are some best practices followed by U.S. HVAC technicians and recommended for DIY homeowners:

Safety First

• Always turn off power at the circuit breaker before touching thermostat or furnace wiring.
• Use a non-contact voltage tester to confirm no live current.
• Double-check wiring diagrams from both your thermostat manual and your HVAC unit.

Wire Preparation

• Strip only 1/4 inch of insulation to avoid short circuits.
• Twist stranded wires to prevent fraying.
• Use wire labels or masking tape to mark each wire before disconnecting the old thermostat.

Terminal Matching

• Match each wire by color and function, not just by guesswork.
• Ensure wires are securely fastened under terminal screws. Loose wires can cause intermittent operation.

Mounting & Positioning

• Mount the thermostat on an interior wall, away from direct sunlight, windows, or heat registers.
• Keep it at eye level (about 5 feet from the floor) for accurate temperature readings.

Pro Tip for Americans

If you live in regions with harsh winters (Minnesota, Michigan, New York) or hot summers (Texas, Arizona, Florida), proper placement and wiring are extra important. Incorrect wiring can cause short cycling, wasted energy, and higher utility bills.

Common Problems & Troubleshooting

Even with careful installation, thermostat wiring issues can occur. Here are the most common problems U.S. homeowners face—and how to fix them:

Thermostat Has No Power

• Cause: Missing or loose C-wire, tripped breaker, or blown fuse.
• Fix: Check furnace control board fuse, tighten connections, or install a C-wire adapter.

HVAC System Won’t Turn On

• Cause: Miswired R, W, or Y terminals.
• Fix: Double-check wiring diagram and re-secure connections.

Fan Runs Constantly

• Cause: G wire shorted or incorrectly connected.
• Fix: Ensure G wire is connected only to the G terminal.

Heat Pump Reversing Valve Issues

• Cause: O/B wire configured incorrectly (cool vs. heat mode).
• Fix: Adjust settings in the thermostat menu (O for cooling, B for heating).

Wi-Fi Smart Thermostat Keeps Rebooting

• Cause: Power stealing due to lack of C-wire.
• Fix: Add a dedicated C-wire or use a power extender kit.

If problems persist, contact an HVAC professional. In the U.S., companies like Trane, Carrier, and Lennox dealers offer same-day service for thermostat wiring issues.

Smart Thermostats & Modern Wiring Needs

Smart thermostats like Nest, Ecobee, Honeywell Lyric, and Emerson Sensi are changing how Americans manage home comfort. But they also have unique wiring requirements compared to old mercury or digital thermostats.

Why Smart Thermostats Need Special Wiring

• Require constant 24V power → hence the importance of a C-wire.
• Connect to Wi-Fi, Alexa, and Google Home for remote control.
• Some models support multiple-stage heating/cooling, humidifiers, and dehumidifiers—meaning more wires are needed.

Modern Wiring Features

• Dual fuel systems (gas + heat pump): Require extra wiring for balance points.
• Zoned HVAC systems: Each zone thermostat may need its own C-wire.
• Energy monitoring: Some models use additional wiring to track HVAC runtime.

U.S. Homeowner Benefits of Smart Thermostat Wiring

• Save 10–20% annually on energy bills (according to U.S. Department of Energy studies).
• Rebates available from many American utility companies (example: PG&E in California, Con Edison in New York, Xcel Energy in Minnesota).
• Improved comfort with learning algorithms, occupancy sensors, and smartphone control.

Quick Wiring Check for Smart Thermostats

• R – Power from furnace
• C – Common wire (required for most smart models)
• W – Heat
• Y – Cooling
• G – Fan
• O/B – Heat pump reversing valve (if applicable)

Buying Guide: What Wire to Use

When replacing or installing thermostat wires in an American home, choosing the right type of wire is essential for both performance and safety.

• Gauge (Thickness): Most thermostat wires are 18-gauge (18 AWG). This strikes the right balance between flexibility and strength for low-voltage control systems.
• Conductor Count:
  • 2-wire (18/2): For simple heating-only systems.
  • 4-wire (18/4): Standard for older HVAC systems.
  • 5-wire (18/5): Ideal for modern setups with a C-wire (common for smart thermostats).
  • 8-wire (18/8): Recommended if you want to future-proof your system for advanced HVAC controls.
• Solid vs. Stranded Wire:
  • Solid-core wires are common and easy to work with.
  • Stranded wires are more flexible, making them better for tight spaces.
• UL-Rated & CL2/CL3: Always choose thermostat cables that meet UL safety standards and are rated CL2 or CL3 for in-wall installation.
• Outdoor Considerations: If running wires outside, pick cables with UV and moisture resistance.

Pro Tip: Always buy a slightly higher conductor count than you currently need—it’s a small investment now that can save big headaches later when upgrading to a smart thermostat.

Common Problems with Thermostat Wires (and Fixes)

1. No Power to Thermostat → Check R and C wires, ensure breaker isn’t tripped.
2. Thermostat Not Cooling → Yellow (Y) wire loose or disconnected.
3. Fan Runs Continuously → Green (G) wire miswired.
4. Smart Thermostat Won’t Work → Missing C-wire (use adapter or run new wire).
5. Corroded/Broken Wires → Replace with new 18-gauge thermostat cable.

The Role of Thermostat Wires in American Smart Homes

With the boom of smart home devices, thermostat wires are more important than ever:

• Google Nest & Ecobee require a C-wire for constant power.
• Honeywell Wi-Fi thermostats often need 5-wire systems.
• Smart zoning systems use 6–8 wires for advanced control.

Future trends suggest some thermostats may become fully wireless, but in the near term, thermostat wires remain critical in American households

Tools and Safety Precautions for Americans

• Tools needed: wire stripper, screwdriver, voltage tester, drill (if running new wires).
• Safety steps:
  • Always cut power at the breaker.
  • Use proper wire connectors.
  • Label wires before disconnecting.
  • Never touch bare copper while power is on.

Past, Present, and Future of Thermostat Wires in America

• Past: Simple 2-wire connections for furnaces.
• Present: Standard 5-wire systems for central AC and heating.
• Future: Wireless and smart thermostats may reduce the need for physical wires, but most American homes still rely on traditional wiring.

Pros and Cons of Thermostat Wires

Furnace Thermostat Wiring vs. HVAC Thermostat Wiring

There’s a difference between furnace thermostat wiring and HVAC thermostat wiring:

• Furnace Thermostat Wiring: Typically connects R, W, G, and sometimes C wires. Focused on heating.
• HVAC Thermostat Wiring: Includes R, W, G, Y, C, and possibly O/B wires for full heating and cooling.

When wiring a thermostat to a furnace, Americans often search: “wiring thermostat to furnace” or “home thermostat wiring”.

Frequently Asked Questions (FAQs)

Q1: What gauge wire is used for thermostats in the USA?

A: Most American thermostats use 18-gauge copper wire (18/5 is common).

Q2: Can I install a thermostat without a C-wire?

A: Yes, with a C-wire adapter or battery-powered thermostat, but most smart thermostats work best with a C-wire.

Q3: Why does my thermostat have extra wires not connected?

A: HVAC contractors often install extra wires for future upgrades. Leave them capped.

Q4: How do I know if my thermostat wires are bad?

A: Signs include thermostat losing power, inconsistent heating/cooling, or corroded copper ends.

Q5: Are thermostat wires dangerous to touch?

A: They carry low-voltage (24V), so not usually harmful, but always turn off power before touching.

Q6: What’s the difference between Rc and Rh wires?

A: Rc = cooling power, Rh = heating power. In many American homes, they’re jumpered together.

Q7: Can thermostat wires go bad over time?

A: Yes, insulation may crack or copper may corrode, especially in older homes.

Q8: How do I add a C-wire if my thermostat doesn’t have one?

A: Options include running new wire, using a C-wire adapter, or connecting to the furnace’s control board.

Q9: Can I use doorbell wire instead of thermostat wire?

A: No, thermostat wire is specifically designed for HVAC use (18-gauge solid copper).

Conclusion

Thermostat wires may look simple, but they are the lifeline of your HVAC system. From traditional two-wire heating systems to advanced smart thermostats with Wi-Fi connectivity, understanding wire types, color codes, and installation practices is essential for safe and efficient home comfort.

Whether you’re a DIY homeowner in Texas upgrading to a Nest, an apartment owner in New York troubleshooting an old furnace thermostat, or a Florida resident installing a new heat pump thermostat, the knowledge of thermostat wiring helps you save time, reduce mistakes, and future-proof your HVAC system.

In short: Know your wires, match them correctly, and invest in the right cable today for long-term HVAC efficiency.

Summary

• Thermostat wires connect your thermostat to the HVAC system, carrying low-voltage signals.
• They come in different types (2-wire, 3-wire, 4-wire, 5-wire, 8-wire) depending on system needs.
• Color coding (R, W, Y, G, C, O/B, Aux) is standard across U.S. HVAC systems.
• A C-wire is often required for modern smart thermostats like Ecobee and Nest.
• Follow installation best practices: turn off power, strip carefully, match wires to terminals, and label before removing.
• Troubleshooting common issues like loose connections or miswiring prevents costly HVAC problems.
• Smart thermostats demand proper wiring for Wi-Fi and advanced features.
• Buying guide tip: use 18-gauge, UL-rated, CL2/CL3 thermostat wire and always consider extra conductors for future upgrades.
• Americans frequently search queries like “Do I need a C-wire for Nest?” and “What gauge is thermostat wire?”.
• Understanding thermostat wiring = better comfort, efficiency, and safety.
